2017, 4(4): 285-318. doi: 10.3934/jdg.2017016

Game theoretical modelling of a dynamically evolving network I: General target sequences

1.

Department of Mathematics, City, University of London, Northampton Square, London EC1V 0HB, UK

2.

School of Mathematics and Statistics, The University of Sheffield, Hounsfield Road, Sheffield, S3 7RH, UK

* Corresponding author: Mark Broom

Received  December 2016 Revised  May 2017 Published  September 2017

Animal (and human) populations contain a finite number of individuals with social and geographical relationships which evolve over time, at least in part dependent upon the actions of members of the population. These actions are often not random, but chosen strategically. In this paper we introduce a game-theoretical model of a population where the individuals have an optimal level of social engagement, and form or break social relationships strategically to obtain the correct level. This builds on previous work where individuals tried to optimise their number of connections by forming or breaking random links; the difference being that here we introduce a truly game-theoretic version where they can choose which specific links to form/break. This is more realistic and makes a significant difference to the model, one consequence of which is that the analysis is much more complicated. We prove some general results and then consider a single example in depth.

Citation: Mark Broom, Chris Cannings. Game theoretical modelling of a dynamically evolving network I: General target sequences. Journal of Dynamics & Games, 2017, 4 (4) : 285-318. doi: 10.3934/jdg.2017016
References:
[1]

B. Allen, M. A. Nowak, Games on graphs, EMS Surveys in Mathematical Sciences, 1 (2014), 113-151. doi: 10.4171/EMSS/3.

[2]

T. Antal, S. Redner and V. Sood, Evolutionary dynamics on degree -heterogeneous graphs, Phys Rev Lett, 96 (2006), 188014.

[3]

A.-L. Barabási, R. Albert, Emergence of scaling in random networks, Science, 286 (1999), 509-512.

[4]

B. Bollobás, Random Graphs, Academic Press, London, 1985.

[5]

B. Bollobás, O. Riordan, J. Spenser, G. Tusnády, The degree sequence of a scale-free random graph process, Random Struct.Alg, 18 (2001), 279-290. doi: 10.1002/rsa.1009.

[6]

M. Broom, C. Cannings, A dynamic network population model with strategic link formation governed by individual preferences, J. Theor. Biol., 335 (2013), 160-168. doi: 10.1016/j.jtbi.2013.06.024.

[7]

M. Broom, C. Cannings, Graphic Deviation, Discrete Mathematics, 338 (2015), 701-711. doi: 10.1016/j.disc.2014.12.011.

[8]

M. Broom and C. Cannings, Games on dynamically evolving networks: Game theoretical modelling of a dynamically evolving network Ⅱ: special target sequences, In preparation.

[9]

M. Broom, J. Rychtář, An analysis of the fixation probability of a mutant on special classes of non-directed graphs, Proc R Soc A, 464 (2008), 2609-2627. doi: 10.1098/rspa.2008.0058.

[10]

C. Cannings, The latent roots of certain markov chans arising in genetics: A new approach Ⅱ. Further haploid models, Adv.Appl.Prob., 7 (1975), 264-282. doi: 10.1017/S0001867800045985.

[11]

C. Capitanio, Sociability and response to video playback in adult male rhesus monkeys (macac mulatta), Primates, 43 (2002), 169-177.

[12]

M. Cavaliere, S. Sedwards, C. E. Tarnita, M. A. Nowak, A. Csikász-Nagy, Prosperity is associated with instability in dynamical networks, J. Theor. Biol., 299 (2012), 126-138. doi: 10.1016/j.jtbi.2011.09.005.

[13]

R. C. Connor, M. R. Helthaus, L. M. Barre, Superalliances of bottlenose dolphins, Nature, 397 (1999), 571-572.

[14]

P. I. M. Dunbar, Neocortex size as a constraint on group size in primates, J.Human Evoluion, 22 (1992), 468-493.

[15]

C. S. Elton, Animal Ecology, Sidgwick & Jackson, London, 1927.

[16]

R. A. Fisher, The Genetical Theory of Natural Selection, Clarendon Press, Oxford, 1999.

[17]

F. Fu, C. Hauert, M. A. Nowak and L. Wang, Reputation-based partner choice promotes cooperation in social networks, Phys. Rev. E, 78 (2008), 026117.

[18]

S. L. Hakimi, On the realizability of a set of integers as degrees of the vertices of a graph, SIAM J. Appl.Math., 10 (1960), 496-506. doi: 10.1137/0110037.

[19]

W. Hamilton, The genetical evolution of social behaviour, Ⅰ, Journal of Theoretical Biology, 7 (1964a), 16pp.

[20]

W. Hamilton, The genetical evolution of social behaviour, Ⅱ, Journal of Theoretical Biology, 7 (1964b), 52pp.

[21]

W. D. Hamilton, Extraordinary sex ratios, Science, 156 (1967), 477-488.

[22]

W. Hässelbarth, Die Verzweightheit von Graphen, Comm. in Math. and Computer Chem. (MATCH), 16 (1984), 3-17.

[23]

V. Havel, A remark on the existence of finite graphs, Časopis Pěst. Mat., 80 (1955), 477-480.

[24]

R. A. Hill, R. I. M. Dunbar, Social network size in humans, Human Nature, 1 (2003), 53-72.

[25]

J. Hofbauer and K. Sigmund, The Theory of Evolution and Dynamical Systems, Cambridge University Press, 1988.

[26]

J. Hofbauer and K. Sigmund, Evolutionary Games and Population Dynamics, Cambridge University Press, 1998.

[27]

M. Kimura, "Stepping stone" model of population, Ann. Rep. Nat. Ist. Genet. Mishima, 3 (1953), 63-65.

[28]

E. Lieberman, C. Hauert, M. A. Nowak, Evolutionary dynamics on graphs, Nature, 433 (2005), 312-316.

[29]

J. Maynard Smith, G. R. Price, The logic of animal conflict, Nature, 246 (1973), 15-18.

[30]

J. Maynard Smith, Evolution and the Theory of Games, Cambridge University Press, 1982.

[31]

B. D. McKay, N. C. Wormald, Uniform generation of random regular graphs of moderate degree, J. Algorithms, 11 (1990), 52-67. doi: 10.1016/0196-6774(90)90029-E.

[32]

R. Merris and T. Roby, The lattice of threshold graphs, J. Inequal. Pure and Appl. Math., 6 (2005), Article 2, 21pp.

[33]

P. A. P. Moran, The theory of some genetical effects of population subdivision, Aust. J. biol. Sci., 12 (1959), 109-116.

[34]

R. Noë, Biological markets: Partner choice as the driving force behind the evolution of cooperation. In: Economics in Nature. Social Dilemmas, Mate Choice and Biological Markets, (Ed. by Noë, R., van Hooff, J. A. R. A. M. and Hammerstein, P. ), (2001), 93-118. Cambridge: Cambridge University Press.

[35]

R. Noë, P. Hammerstein, Biological markets: Supply and demand determine the effect of partner choice in cooperation, Mutualism and Mating Behav.Ecol.Sociobio, 35 (1994), 1-11.

[36]

J. M. Pacheco, A. Traulsen, M. A. Nowak, Active linking in evolutionary games, J.Theor. Biol., 243 (2006), 437-443. doi: 10.1016/j.jtbi.2006.06.027.

[37]

J. M. Pacheco, A. Traulsen and M. A. Nowak, Coevolution of strategy and structure in complex networks with dynamical linking, Phys. Rev. Lett., 97 (2006), 258103.

[38]

J. Pepper, J. Mitani, D. Watts, General gregariousness and specific social preferences among wild chimpanzees, Int. J. Primatol., 20 (1999), 613-632.

[39]

M. Perc, A. Szolnoki, Coevolutionarygames -a mini review, BioSystems, 99 (2010), 109-125.

[40]

H. Richter, Dynamic landscape models of coevolutionary games, 2016, arXiv: 1611.09149v1 [q-bio. PE]

[41]

E. Ruch, I. Gutman, The branching extent of graphs, J. Combin. Inform. Systems Sci., 4 (1979), 285-295.

[42]

A. M. Sibbald, R. J. Hooper, Sociability and willingness of individual sheep to move away from their companions in order to graze, Applied Animal Behaviour, 86 (2004), 51-62.

[43]

B. Skyrms, R. Pemantle, A dynamic modeloof social network formation, Proc. Naatl. Acad. Sci. USA, 97 (2000), 9340-9346.

[44]

R. Southwell, C. Cannings, Some models of reproducing graphs: Ⅰ pure reproduction, Applied Mathematics, 1 (2010), 137-145.

[45]

R. Southwell, C. Cannings, Some models of reproducing graphs: Ⅱ age capped, Reproduction Applied Mathematics, 1 (2010), 251-259.

[46]

R. Southwell, C. Cannings, Some models of reproducing graphs: Ⅲ game based reproduction, Applied Mathematics, 1 (2010), 335-343.

[47]

G. Szabo, G. Fath, Evolutionary games on graphs, Phys. Rep., 446 (2007), 97-216. doi: 10.1016/j.physrep.2007.04.004.

[48]

C. Taylor, D. Fudenberg, A. Sasaki, M. A. Nowak, Evolutionary game dynamics in finite populations, Bulletin of Mathematical Biology, 66 (2004), 1621-1644. doi: 10.1016/j.bulm.2004.03.004.

[49]

B. Voelkl, C. Kasper, Social structure of primate interaction networks facilitates the emergence of cooperation, Biology Letters, 5 (2009), 462-464.

[50]

B. Voelkl, R. Noë, The influence of social structure on the propagation of social information in artificial primate groups: A graph-based simulation approach, Journal of Theoretical Biology, 252 (2008), 77-86.

[51]

J. Wiszniewski, C. Brown, L. M. Moller, Complex patterns of male alliance formation in dolphin social networks, Journal of Mammalogy, 93 (2012), 239-250.

[52]

S. Wright, Evolution in Mendelian populations, Genetics, 16 (1931), 97-159.

[53]

S. Wright, Breeding structure of populations in relation to speciation, Am. Naturalist, 74 (1940), 232-248.

show all references

References:
[1]

B. Allen, M. A. Nowak, Games on graphs, EMS Surveys in Mathematical Sciences, 1 (2014), 113-151. doi: 10.4171/EMSS/3.

[2]

T. Antal, S. Redner and V. Sood, Evolutionary dynamics on degree -heterogeneous graphs, Phys Rev Lett, 96 (2006), 188014.

[3]

A.-L. Barabási, R. Albert, Emergence of scaling in random networks, Science, 286 (1999), 509-512.

[4]

B. Bollobás, Random Graphs, Academic Press, London, 1985.

[5]

B. Bollobás, O. Riordan, J. Spenser, G. Tusnády, The degree sequence of a scale-free random graph process, Random Struct.Alg, 18 (2001), 279-290. doi: 10.1002/rsa.1009.

[6]

M. Broom, C. Cannings, A dynamic network population model with strategic link formation governed by individual preferences, J. Theor. Biol., 335 (2013), 160-168. doi: 10.1016/j.jtbi.2013.06.024.

[7]

M. Broom, C. Cannings, Graphic Deviation, Discrete Mathematics, 338 (2015), 701-711. doi: 10.1016/j.disc.2014.12.011.

[8]

M. Broom and C. Cannings, Games on dynamically evolving networks: Game theoretical modelling of a dynamically evolving network Ⅱ: special target sequences, In preparation.

[9]

M. Broom, J. Rychtář, An analysis of the fixation probability of a mutant on special classes of non-directed graphs, Proc R Soc A, 464 (2008), 2609-2627. doi: 10.1098/rspa.2008.0058.

[10]

C. Cannings, The latent roots of certain markov chans arising in genetics: A new approach Ⅱ. Further haploid models, Adv.Appl.Prob., 7 (1975), 264-282. doi: 10.1017/S0001867800045985.

[11]

C. Capitanio, Sociability and response to video playback in adult male rhesus monkeys (macac mulatta), Primates, 43 (2002), 169-177.

[12]

M. Cavaliere, S. Sedwards, C. E. Tarnita, M. A. Nowak, A. Csikász-Nagy, Prosperity is associated with instability in dynamical networks, J. Theor. Biol., 299 (2012), 126-138. doi: 10.1016/j.jtbi.2011.09.005.

[13]

R. C. Connor, M. R. Helthaus, L. M. Barre, Superalliances of bottlenose dolphins, Nature, 397 (1999), 571-572.

[14]

P. I. M. Dunbar, Neocortex size as a constraint on group size in primates, J.Human Evoluion, 22 (1992), 468-493.

[15]

C. S. Elton, Animal Ecology, Sidgwick & Jackson, London, 1927.

[16]

R. A. Fisher, The Genetical Theory of Natural Selection, Clarendon Press, Oxford, 1999.

[17]

F. Fu, C. Hauert, M. A. Nowak and L. Wang, Reputation-based partner choice promotes cooperation in social networks, Phys. Rev. E, 78 (2008), 026117.

[18]

S. L. Hakimi, On the realizability of a set of integers as degrees of the vertices of a graph, SIAM J. Appl.Math., 10 (1960), 496-506. doi: 10.1137/0110037.

[19]

W. Hamilton, The genetical evolution of social behaviour, Ⅰ, Journal of Theoretical Biology, 7 (1964a), 16pp.

[20]

W. Hamilton, The genetical evolution of social behaviour, Ⅱ, Journal of Theoretical Biology, 7 (1964b), 52pp.

[21]

W. D. Hamilton, Extraordinary sex ratios, Science, 156 (1967), 477-488.

[22]

W. Hässelbarth, Die Verzweightheit von Graphen, Comm. in Math. and Computer Chem. (MATCH), 16 (1984), 3-17.

[23]

V. Havel, A remark on the existence of finite graphs, Časopis Pěst. Mat., 80 (1955), 477-480.

[24]

R. A. Hill, R. I. M. Dunbar, Social network size in humans, Human Nature, 1 (2003), 53-72.

[25]

J. Hofbauer and K. Sigmund, The Theory of Evolution and Dynamical Systems, Cambridge University Press, 1988.

[26]

J. Hofbauer and K. Sigmund, Evolutionary Games and Population Dynamics, Cambridge University Press, 1998.

[27]

M. Kimura, "Stepping stone" model of population, Ann. Rep. Nat. Ist. Genet. Mishima, 3 (1953), 63-65.

[28]

E. Lieberman, C. Hauert, M. A. Nowak, Evolutionary dynamics on graphs, Nature, 433 (2005), 312-316.

[29]

J. Maynard Smith, G. R. Price, The logic of animal conflict, Nature, 246 (1973), 15-18.

[30]

J. Maynard Smith, Evolution and the Theory of Games, Cambridge University Press, 1982.

[31]

B. D. McKay, N. C. Wormald, Uniform generation of random regular graphs of moderate degree, J. Algorithms, 11 (1990), 52-67. doi: 10.1016/0196-6774(90)90029-E.

[32]

R. Merris and T. Roby, The lattice of threshold graphs, J. Inequal. Pure and Appl. Math., 6 (2005), Article 2, 21pp.

[33]

P. A. P. Moran, The theory of some genetical effects of population subdivision, Aust. J. biol. Sci., 12 (1959), 109-116.

[34]

R. Noë, Biological markets: Partner choice as the driving force behind the evolution of cooperation. In: Economics in Nature. Social Dilemmas, Mate Choice and Biological Markets, (Ed. by Noë, R., van Hooff, J. A. R. A. M. and Hammerstein, P. ), (2001), 93-118. Cambridge: Cambridge University Press.

[35]

R. Noë, P. Hammerstein, Biological markets: Supply and demand determine the effect of partner choice in cooperation, Mutualism and Mating Behav.Ecol.Sociobio, 35 (1994), 1-11.

[36]

J. M. Pacheco, A. Traulsen, M. A. Nowak, Active linking in evolutionary games, J.Theor. Biol., 243 (2006), 437-443. doi: 10.1016/j.jtbi.2006.06.027.

[37]

J. M. Pacheco, A. Traulsen and M. A. Nowak, Coevolution of strategy and structure in complex networks with dynamical linking, Phys. Rev. Lett., 97 (2006), 258103.

[38]

J. Pepper, J. Mitani, D. Watts, General gregariousness and specific social preferences among wild chimpanzees, Int. J. Primatol., 20 (1999), 613-632.

[39]

M. Perc, A. Szolnoki, Coevolutionarygames -a mini review, BioSystems, 99 (2010), 109-125.

[40]

H. Richter, Dynamic landscape models of coevolutionary games, 2016, arXiv: 1611.09149v1 [q-bio. PE]

[41]

E. Ruch, I. Gutman, The branching extent of graphs, J. Combin. Inform. Systems Sci., 4 (1979), 285-295.

[42]

A. M. Sibbald, R. J. Hooper, Sociability and willingness of individual sheep to move away from their companions in order to graze, Applied Animal Behaviour, 86 (2004), 51-62.

[43]

B. Skyrms, R. Pemantle, A dynamic modeloof social network formation, Proc. Naatl. Acad. Sci. USA, 97 (2000), 9340-9346.

[44]

R. Southwell, C. Cannings, Some models of reproducing graphs: Ⅰ pure reproduction, Applied Mathematics, 1 (2010), 137-145.

[45]

R. Southwell, C. Cannings, Some models of reproducing graphs: Ⅱ age capped, Reproduction Applied Mathematics, 1 (2010), 251-259.

[46]

R. Southwell, C. Cannings, Some models of reproducing graphs: Ⅲ game based reproduction, Applied Mathematics, 1 (2010), 335-343.

[47]

G. Szabo, G. Fath, Evolutionary games on graphs, Phys. Rep., 446 (2007), 97-216. doi: 10.1016/j.physrep.2007.04.004.

[48]

C. Taylor, D. Fudenberg, A. Sasaki, M. A. Nowak, Evolutionary game dynamics in finite populations, Bulletin of Mathematical Biology, 66 (2004), 1621-1644. doi: 10.1016/j.bulm.2004.03.004.

[49]

B. Voelkl, C. Kasper, Social structure of primate interaction networks facilitates the emergence of cooperation, Biology Letters, 5 (2009), 462-464.

[50]

B. Voelkl, R. Noë, The influence of social structure on the propagation of social information in artificial primate groups: A graph-based simulation approach, Journal of Theoretical Biology, 252 (2008), 77-86.

[51]

J. Wiszniewski, C. Brown, L. M. Moller, Complex patterns of male alliance formation in dolphin social networks, Journal of Mammalogy, 93 (2012), 239-250.

[52]

S. Wright, Evolution in Mendelian populations, Genetics, 16 (1931), 97-159.

[53]

S. Wright, Breeding structure of populations in relation to speciation, Am. Naturalist, 74 (1940), 232-248.

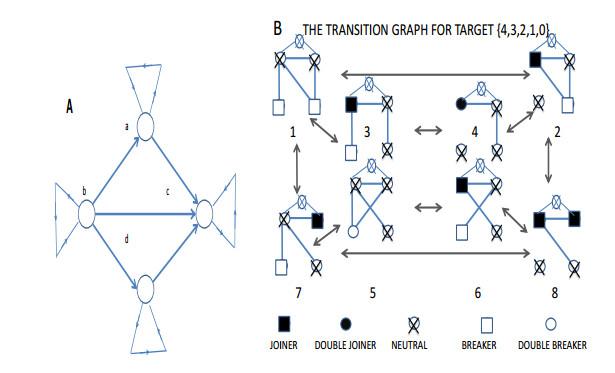

Figure 1.  1A: Possible sequences of set membership. 1B: Schematic of the transition graph for the minimal graphs for target $43210$. For each graph, the top symbol represents the vertex with target 2, which is always a neutral vertex. The vertices with targets 0, 1, 3, 4 are represented by the symbols in the bottom left, bottom right, middle right and middle left positions, respectively. Each graph contains a specific set of links between the symbols, and the corresponding breaker or joiner status is given by the appropriate symbol. Possible transitions are shown by the arrows between the graphs

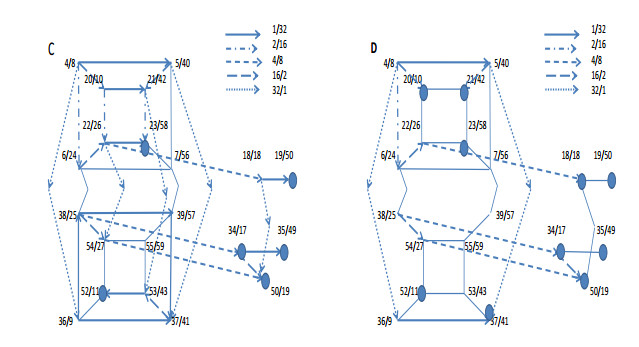

Figure 2.  The transitions starting from matrices $4$ and $8$ on the $5$-cube. The indices of the vertices and of the edges have two numbers, corresponding to the matrix reached from matrix $4$ and $8$ respectively. For example matrices 22 can be reached from matrix 4 by 16 then 2 (see Table 5). From 22 one can reach 18, 23 and 54, and 22 can be reached from 6, 20 and 30. The possible transitions from 26 are 18, 23 and 58 and can be reached from 10, 24 and 30. Stable matrices are highlighted. 2A: cost=0, 2B: cost=0.1.
